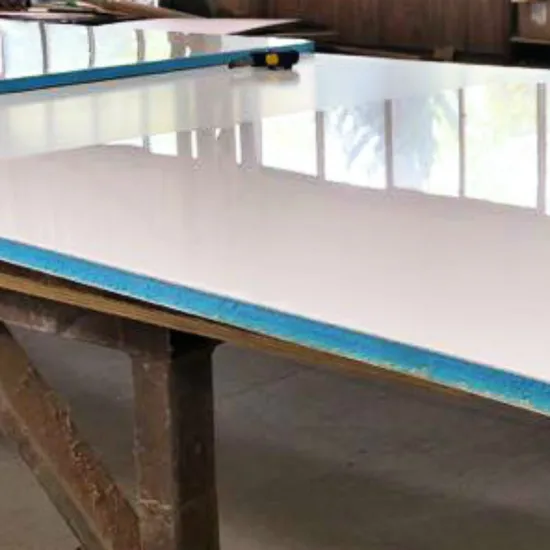

Light Weight FRP XPS Composite Panel for Wall Panel

Basic Info.

Model NO.	HY3XPS
Width	Upto 2700mm
Length	Upto 17.5m
Fire Resistant	Optional
Embedded Part	Available
Bonding Tech	Vacuum Bonding
Core Material	XPS
XPS Density	30, 35kg/M3, Other on Request
Type	Rigid Waterproof Material
Ceiling Tile Shape	Rectangle
Surface Treatment	Film Coated
Function	Fireproof, Heat Insulation, Sound-Absorbing, Waterproof
Certification	ISO
Usage	Outdoor, Indoor
Material	XPS
Transport Package	Standard Seaworthy Pallet, Film on Each Panel
Specification	standard 1220*2440
Trademark	Hengyi
Origin	Jiangsu China
HS Code	7019909000
Production Capacity	100000sqm

Product Description

Light weight FRP XPS Composite Panel for wall panel
Product properties Features:Good thermal insulation Flexible strength & High rigidity High mechanical strength Column strength and high impact resistance.High water and vapor resistance Easy clean(hygienic)Chemical resistance Light weight (greater load capacity)Good bonding properties Thinner wall(greater load volume)Light weight Simple repair(no need to replace panels)Long-term performance No joins (to breed bacteria)Easy to us Structure FRP skin + XPS (extrude polystyrene foam) + FRP skin Standard tolerances Width: (600 mm width) +3/-0 mm, (1200 mm width)+5/-0 mm Length: +10/-0 m Thickness: +/-0.5 mm Other Tolerance on request Related Photos
Overview
PanelsIn today's food transport industry refrigerated truck bodies need to meet the ever changing environmental, legislative and commercial demands placed upon them. Bodies need to have the very best in thermal efficiency, be stronger, lighter, and more durable as well as being economical in performance. The choice of thermal insulation and composite panel is a crucial factor in determining how well a body will cope with all of these demanding requirements. Daison use only the very core insulation material which has a unique combination of physical and chemical Characteristics which other insulation materials are unable to match. Panel SpecsLightweight Panels are recommended for Mobile Homes, Trailers and Caravans only. Prices will vary per SQM depending on the FRP layer thickness ordered and if trimming is required. Panels supplied untrimmed will be manufactured slightly oversize to allow for trimming to all sides giving clean sharp edges.

Thickness:	12mm-65mm,according to your application
Width:	up to 2800mm,standard size 1.22m
Length:	2440mm standard, can be customer specific
Colors:	RAL-, scale or customer-specific shades
uv/weathering	Excellent protection
Finish choice	Versatile, meeting different require. Gel coat available
